IMPLEMENTATION OF GUARANTEED POWER SUPPLY SYSTEMS FOR APARTMENTS AND HOUSES

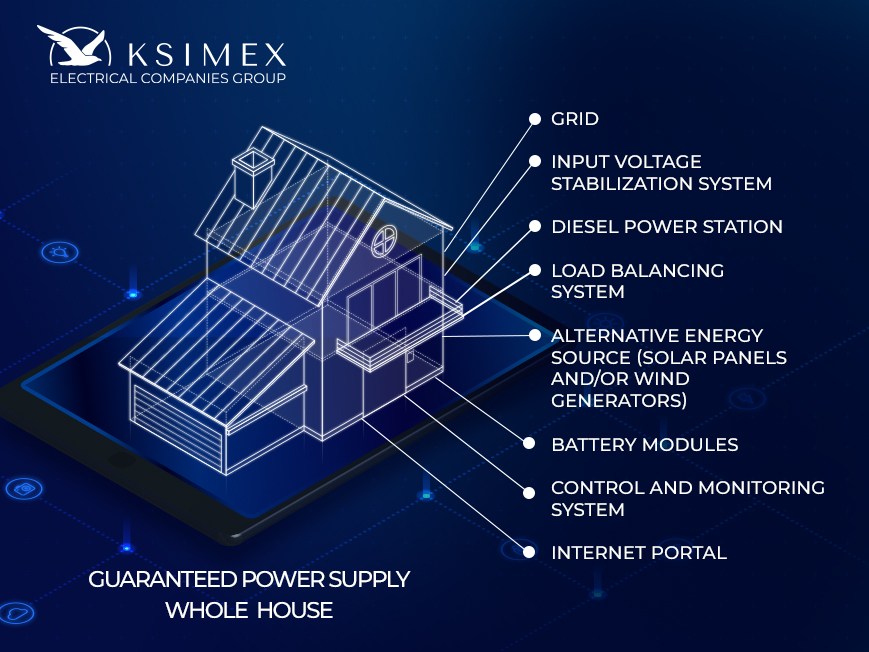

MultiPlus-II or Quattro series inverter-charger devices by Victron Energy and lithium iron phosphate (LiFePO4) battery modules by DYNESS are the foundation of our guaranteed power supply system for houses or apartments.

These devices are installed either separately or as part of power supply switchboards, equipped with fuses, and control automation.

Example of implementing a guaranteed power supply system for a country house based on the Quattro inverter-charger device by Victron Energy

General description of the system

Before the installation of the guaranteed electricity supply system, the house was powered by a three-phase input from the general network or a three-phase diesel generator using an automatic transfer switch.



As part of the modernization, a guaranteed power supply switchboard was installed, and the existing switchboard was modernized.



All household loads, including lighting, video surveillance, security alarms, gas and electric boilers, pumping equipment, as well as air conditioners, have been transferred to a guaranteed power supply.

Load switching between the city grid, diesel generator, or installed batteries is fully automated. The diesel generator is also automatically started. Thus, the residents of the house do not feel discomfort during a power outage, and the intelligent automation of starting the generator depending on the expected battery discharge events does not cause inconvenience at night.

The existing upgraded main switchboard is connected to the incoming cables from the mains, diesel generator, and 230V power cables from the hybrid inverters.

Automatic Transferring Switch has become obsolete and has been replaced by bypass switches to switch the power of consumers directly from the grid, generator (service mode), and hybrid inverters (normal mode).

The project envisages the possibility of expanding the system with alternative energy sources, namely solar panels in the future, to achieve greater energy independence and cost savings.

The Guaranteed Power Supply switchboard

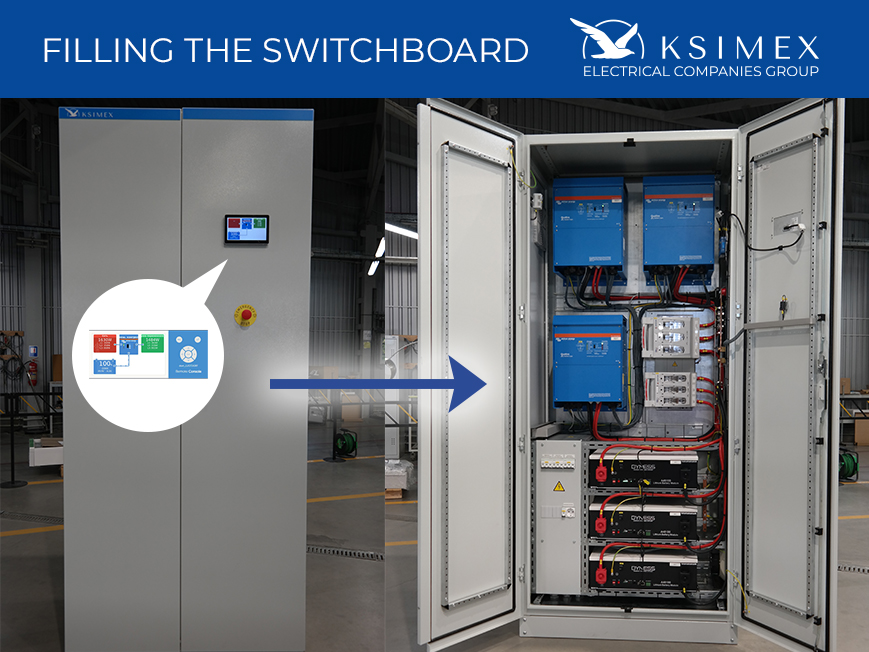

Switchboard includes:

  • Three Quattro series (Victron Energy) three-phase inverter-charger devices.
  • Cerbo GX uninterruptible power supply system controller (Victron Energy).
  • 7-inch GX Touch 70 (Victron Energy) for monitoring and configuration options.
  • Three Dyness A48100 battery modules, 48V 100Ah, 4.8 kWh LiFePO4.
  • Fuses to protect each inverter and battery.
  • Board’s climate control system.
  • The home’s guaranteed power supply management system is integrated into the existing AJAX security system, allowing for automatic load disconnection of the house during security mode activation in the absence of continuous power from the grid. The security system also enables remote control of individual consumers and provides instant operational status notifications for the home’s power supply scheme.

Techical solution

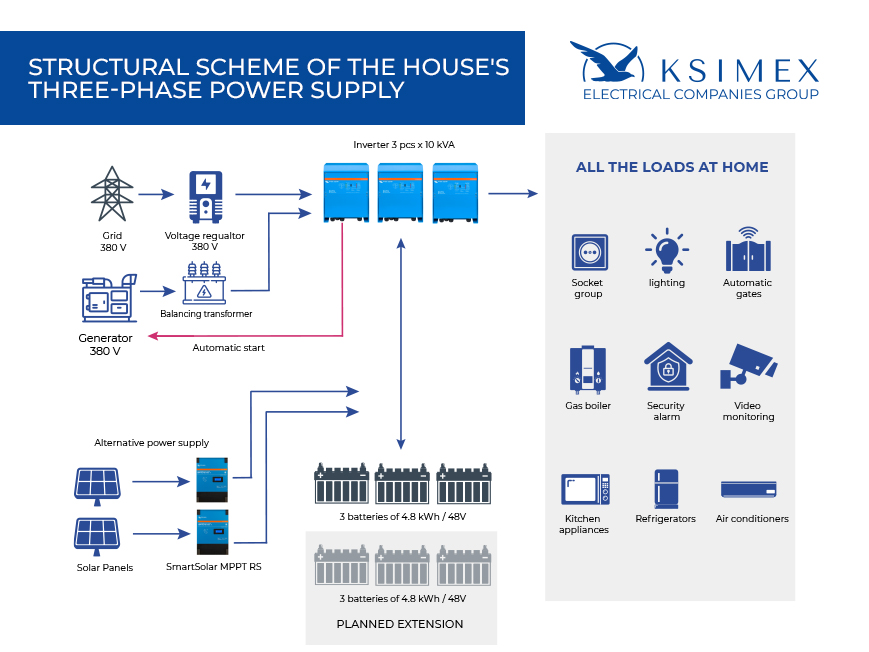

The technical solution for uninterrupted guaranteed power supply for the house is based on a system built with hybrid inverters like the Quattro 48/10000/140-100/100 produced by Victron Energy. Three hybrid inverters are combined into a common three-phase system, receiving single phase power from the grid and diesel generator, charging the battery modules, and supplying power to all household loads. In case of a power failure or when the generator is off, the Quattro switches to inverter mode rapidly enough to ensure uninterrupted operation of computers and other electronic devices (acting as an uninterruptible power supply or UPS).

The first stage of the project involves installing three Dyness A48100 battery modules, each with a capacity of 4.8 kWh, resulting in a total battery storage capacity of 14.4 kWh. This can be used to power any household loads for an extended period without grid power, without relying on the diesel power source.



To protect the 48V DC lines from each battery module and inverters, fuses are provided, offering a classical and reliable protection system for these components.



The second stage of the project includes doubling the overall battery capacity. Additionally, the project envisages a rooftop array of solar panels (string) with an expected generation of 6 kW, allowing for further storage and export of surplus energy to the grid.

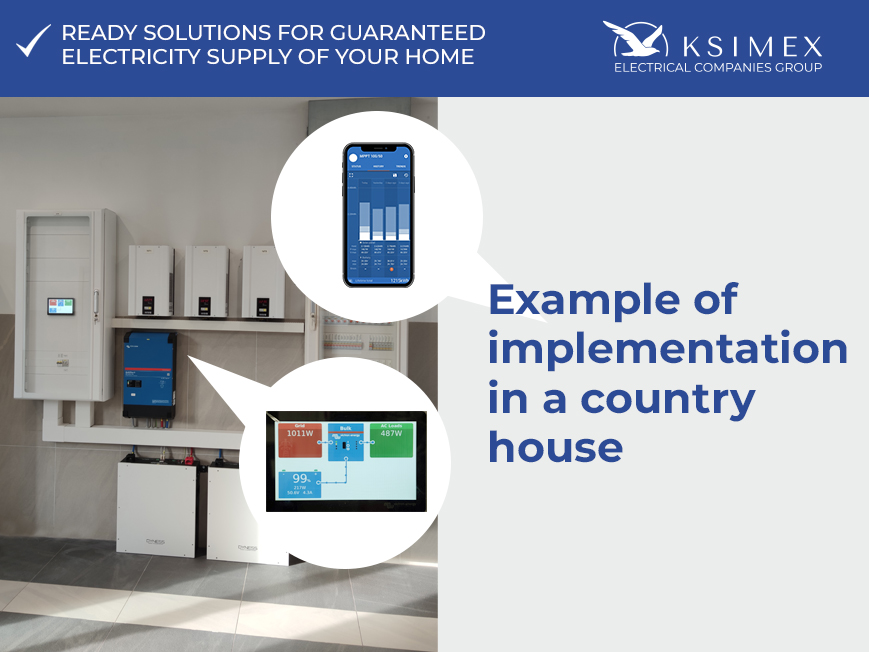

An example of the implementation of a guaranteed power supply system for a country house based on an inverter-charger of the MultiPlus-II series by Victron Energy

General System Description

As a result of the modernization, a single-phase grid inverter, two battery modules, a 48V equipment cabinet, and the existing main distribution board of the house were installed and upgraded.



The power supply for all loads in the existing main distribution board was divided into two groups: non-back-up and back-up connections.

The back-up loads group includes lighting, automatic gates, gas boiler, security alarm, video monitoring, and some socket groups in the house.

The non-guaranteed loads group comprises air conditioners and some socket groups in the house.

Switching back-up loads to operate from the grid, diesel generator, or batteries is fully automatic, and the diesel generator is started manually.



The existing main distribution board is connected with input cables from the grid, the generator, and 230V power cables from the hybrid inverter. Additionally, there is a feature to switch the power supply for consumers in the guaranteed loads group directly from the grid (service mode) or from the inverter (normal mode).

The project includes the possibility of expanding the system with solar panels and a wind power station in the future to achieve greater energy independence and cost savings on electricity.

Technical solution

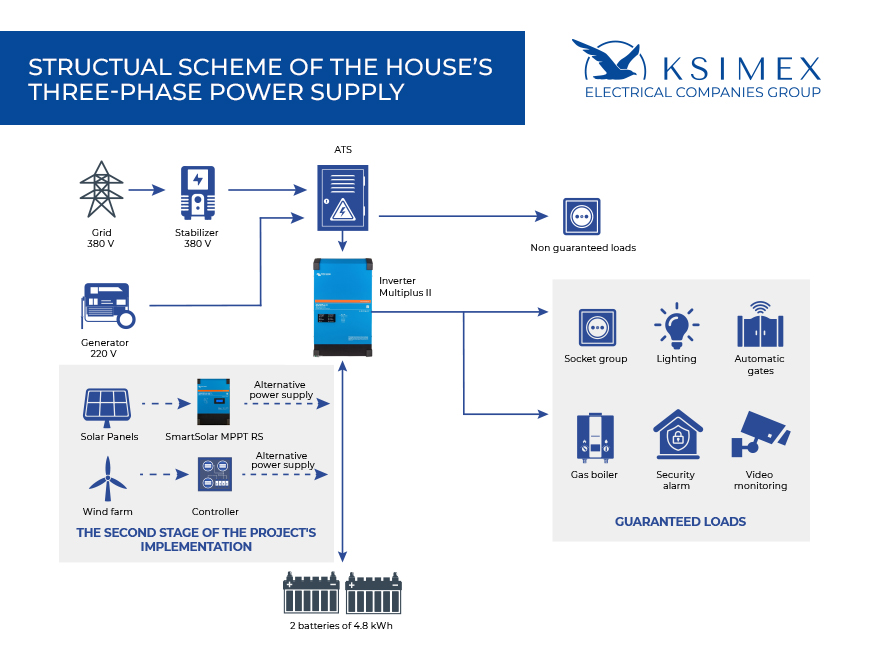

The hybrid inverter receives power from the grid or the generator, charges the battery modules, and supplies power to the guaranteed loads group in the house. In the event of a power failure or generator disconnection, the Multiplus II switches to inverter mode. This transition occurs so quickly that the operation of computers and other electronic devices is not disrupted (acting as an Uninterruptible Power Supply or UPS).

The project involves installing Dyness A48100 battery modules, 48V 100Ah based on LiFePO4, in a total quantity of 2 units, with the possibility of expansion.

Each Dyness A48100 battery module has a capacity of 4.8 kWh, providing a total battery capacity of 9.6 kWh. This can be utilized to power the guaranteed loads group in the house in the absence of grid power.



To protect the 48V DC lines from each battery module and inverters, fuses are provided, installed in a separate 48V cabinet.

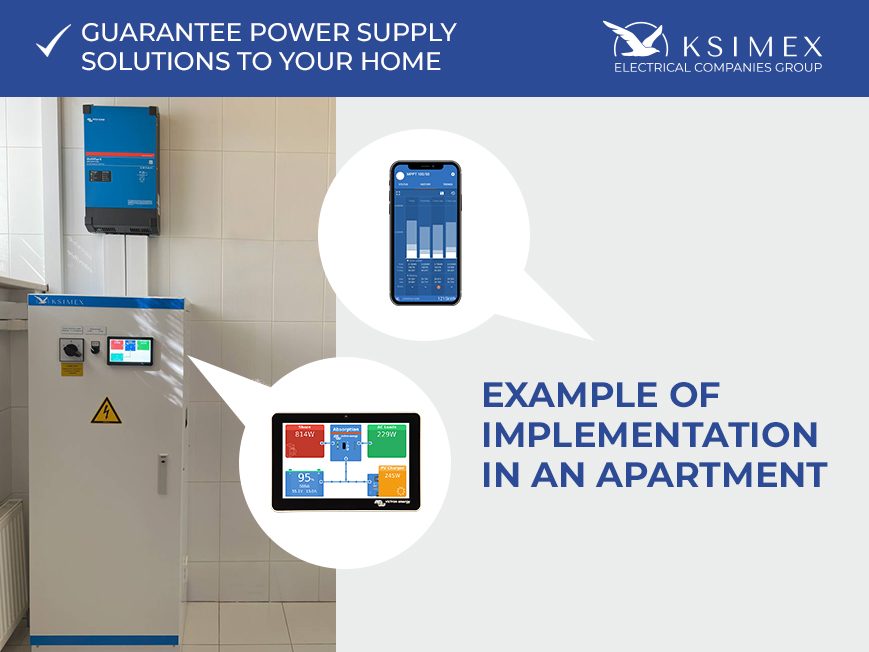

An example of the implementation of a system of guaranteed supply of an apartment based on the MultiPlus-II series inverter-charger by Victron Energy

General System Description

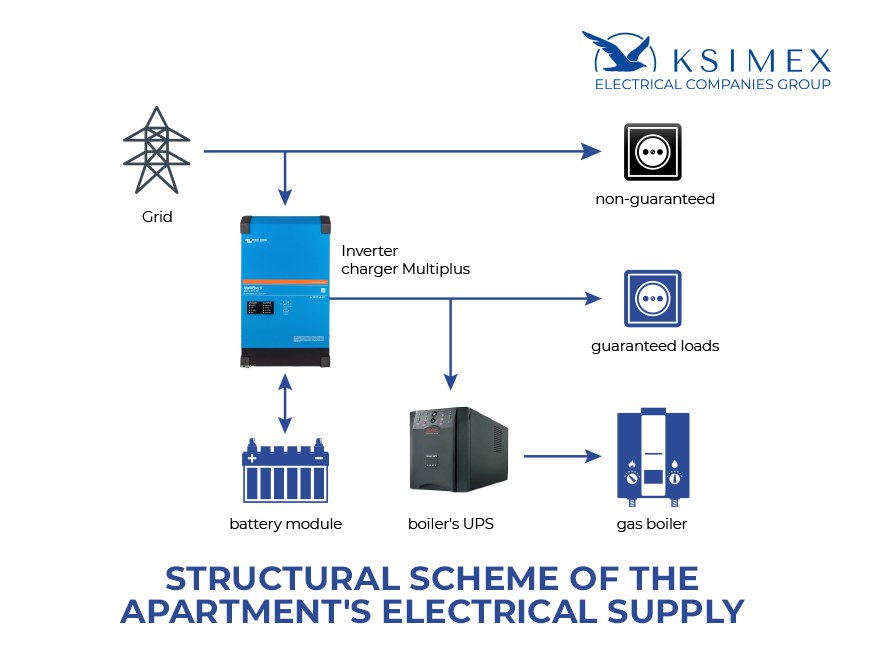

Power for all loads in the apartment distribution panel was divided into two groups: guaranteed and non-guaranteed.

The guaranteed loads group includes lighting, intercom, refrigerator, television, and socket groups in the bedroom and children’s rooms.



The non-guaranteed loads group encompasses air conditioners, boiler, and some kitchen sockets.



The existing uninterruptible power supply source for the boiler, along with its additional batteries, was integrated into the guaranteed power supply cabinet and connected to the guaranteed loads group. This extended the autonomous operation time for the gas heating of the house.

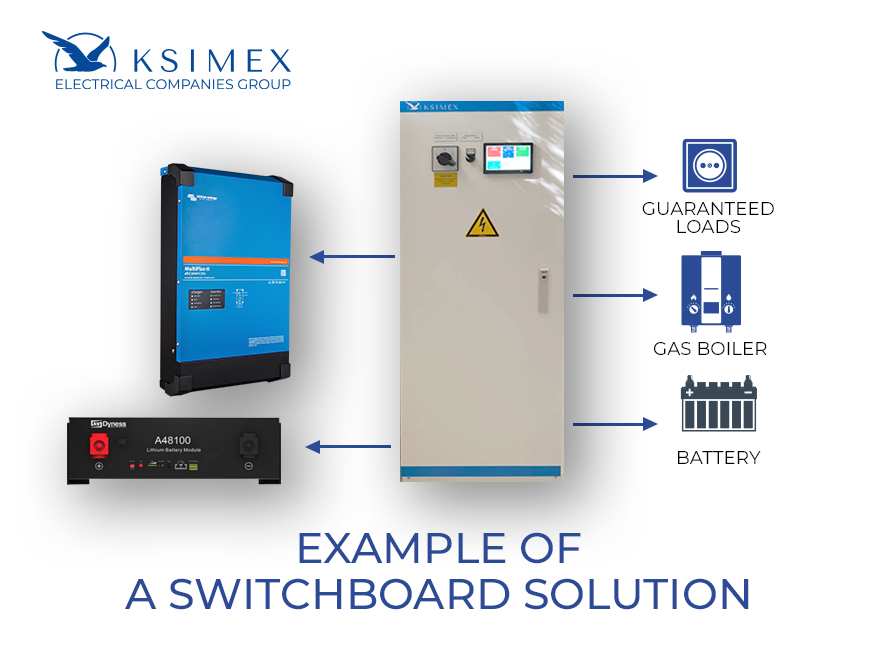

Guaranteed power supply switchboard

In a customizing switchboard, the following components are housed:



  • Cerbo GX uninterruptible power supply system controller (Victron Energy);
  • 7-inch GX Touch 70 display (Victron Energy) for system status and configuration settings;
  • lithium iron phosphate battery module Dyness A48100, 48V 100Ah, 4.8 kWh LiFePo4 with expandable capacity;
  • existing Uninterruptible Power Supply (UPS) for the boiler with a built-in battery;
  • additional 12V battery module for the boiler UPS
  • fuses for the protection of the 48V inverter and battery, rated at 100A.

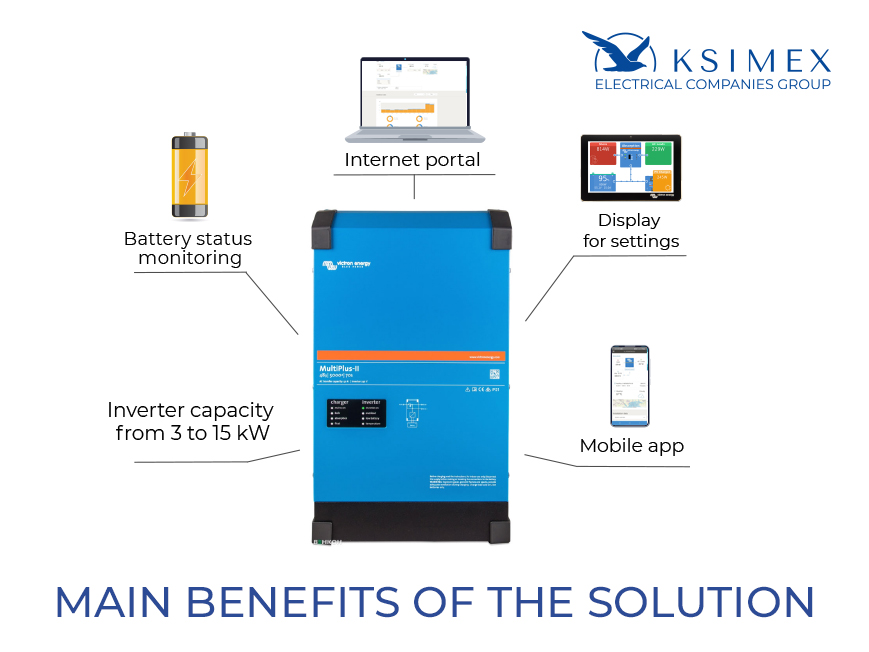

Benefits of Quattro and Multiplus II Series Inverter Chargers by Victron Energy and Dyness A48100 Battery Modules by Dyness

Inverter chargers of the Quattro and Multiplus II series by Victron Energy

• Provide an integrated ecosystem that enables full and convenient control over the power system, regardless of the location.



• VRM Portal (Victron Remote Management): VRM is a web portal allowing users to remotely monitor and manage the system, including MultiPlus-II and other Victron Energy devices. The portal enables tracking system status, checking battery charge and discharge data, and adjusting various operational parameters.



• iOS and Android Compatibility: VictronConnect applications are available for both iOS and Android platforms, allowing easy management and monitoring of the system from mobile devices.



• Touchscreen Display: The touchscreen display ensures real-time monitoring of the system, with the ability to adjust operational parameters and perform other actions directly on the device.



• Access to Battery Management System (BMS): This provides reliable and efficient control over external batteries, maximizing their potential utilization.

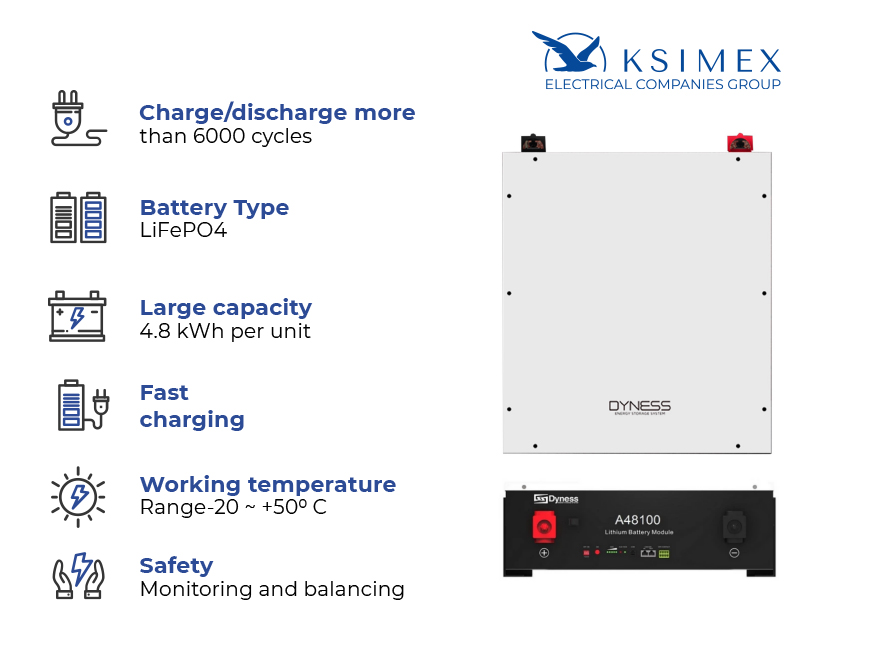

Dyness A48100 Battery Modules based on LiFePO4 (Lithium Iron Phosphate):

• Long service life: LiFePO4 batteries are distinguished by a very long service life, and the ability to a large number of charge and discharge cycles (more than 6000), which makes them worthy of investment.


• Efficiency: Dyness A48100 has high efficiency, which allows you to save and use energy as efficiently as possible.


• The LiFePO4 battery works effectively in a wide temperature range, which makes it suitable for use in various climatic conditions.


• LiFePO4 batteries can be charged faster compared to classical electrochemical cells, which during a blackout gives their owner significant advantages in the time for a full 100% charge.


• The Dyness A48100 battery module has a large capacity of 4.8 kWh (kilowatt-hours), which makes it an ideal choice in terms of size/weight/capacity ratio.


• Safety and balancing: The Dyness A48100 module is equipped with a built-in monitoring system and an interelement balancer board, which ensures the most efficient operation and prevents possible malfunctions or uneven wear of the constituent elements.


In general, the Dyness A48100 48V 100Ah battery module based on LiFePO4 is a reliable and highly efficient solution for systems of rapid accumulation, storage, and high-precision energy output. It can provide reliable power for your power supply system for a long period of operation.
